Anderson RBMPRO 2000 Round bales

  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Anderson RBMPRO 2000 Round bales
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

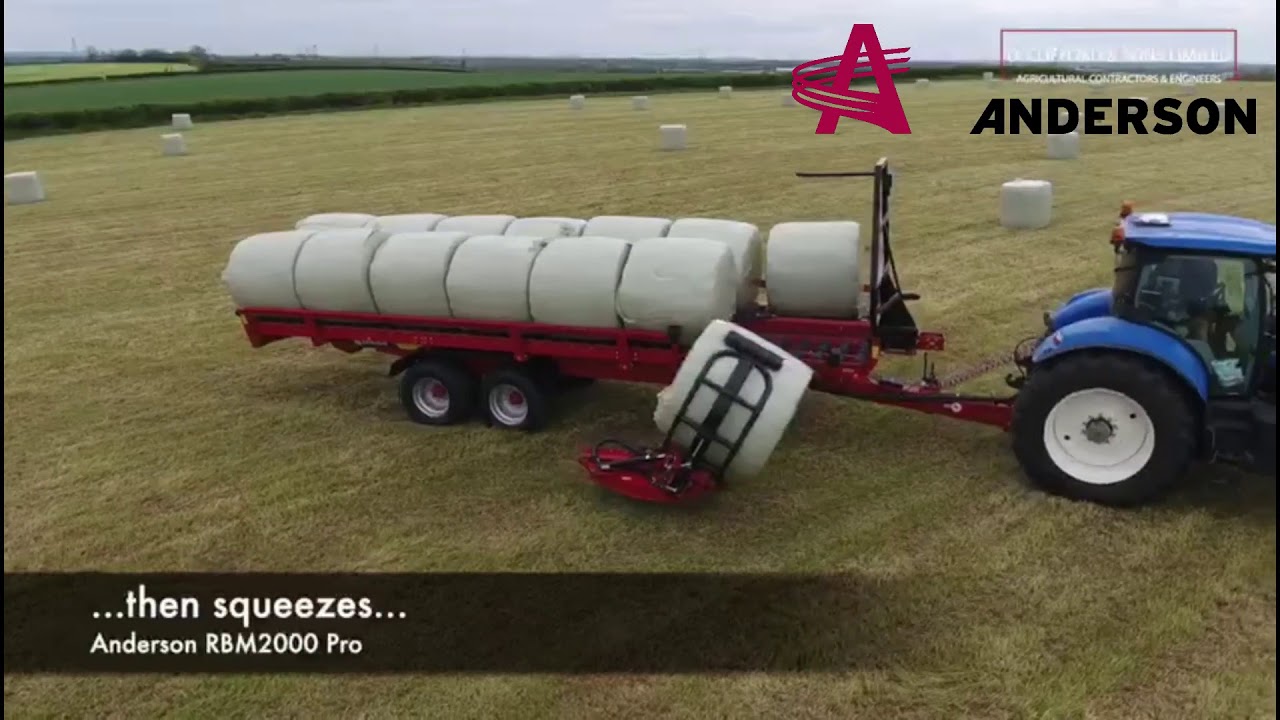

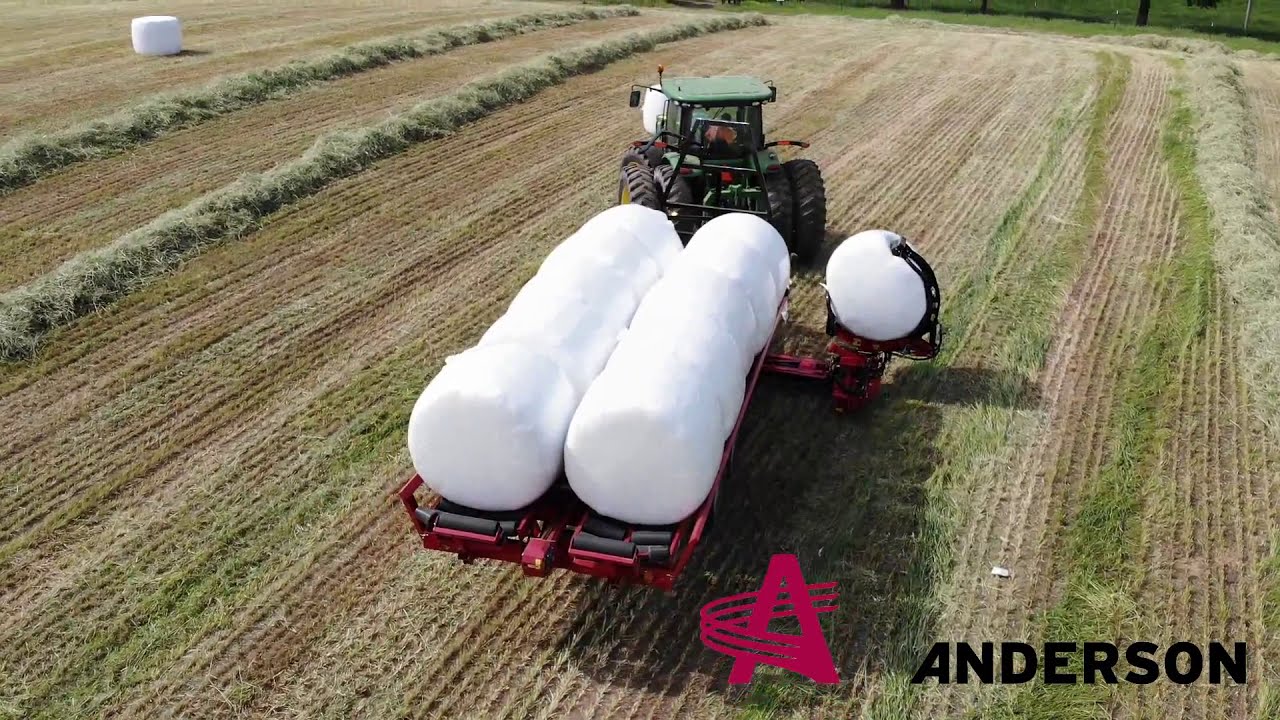

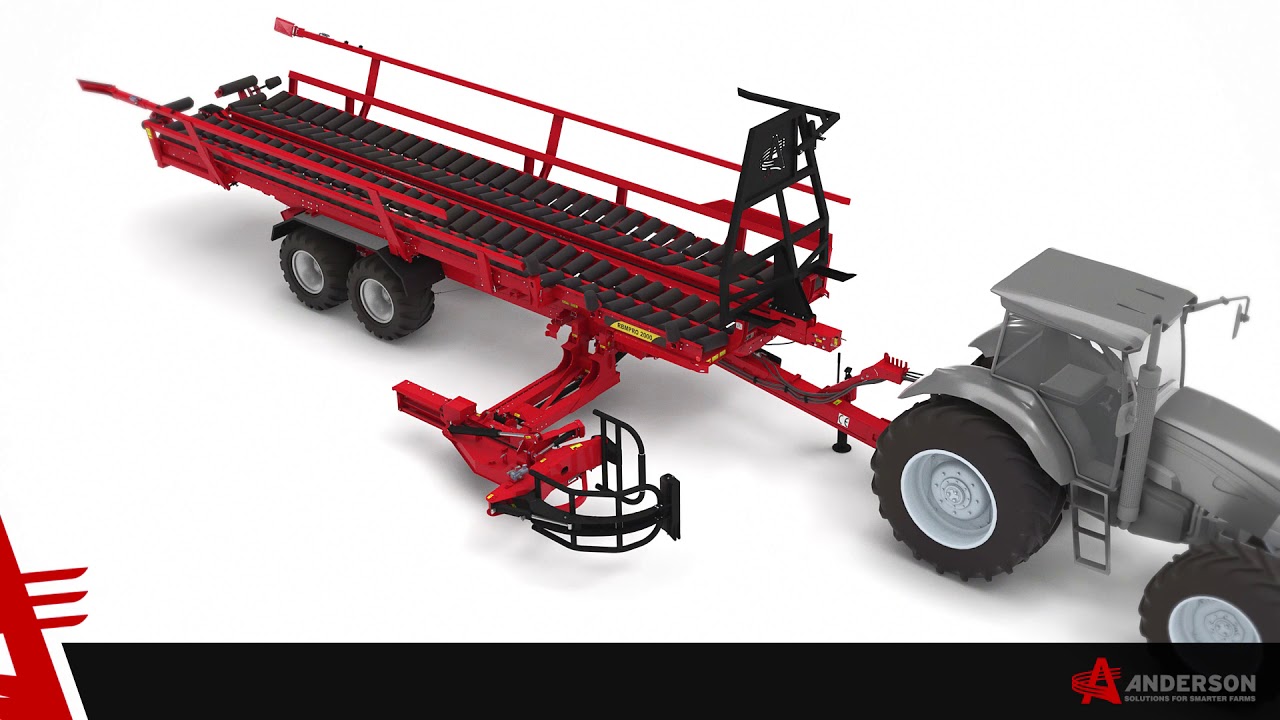

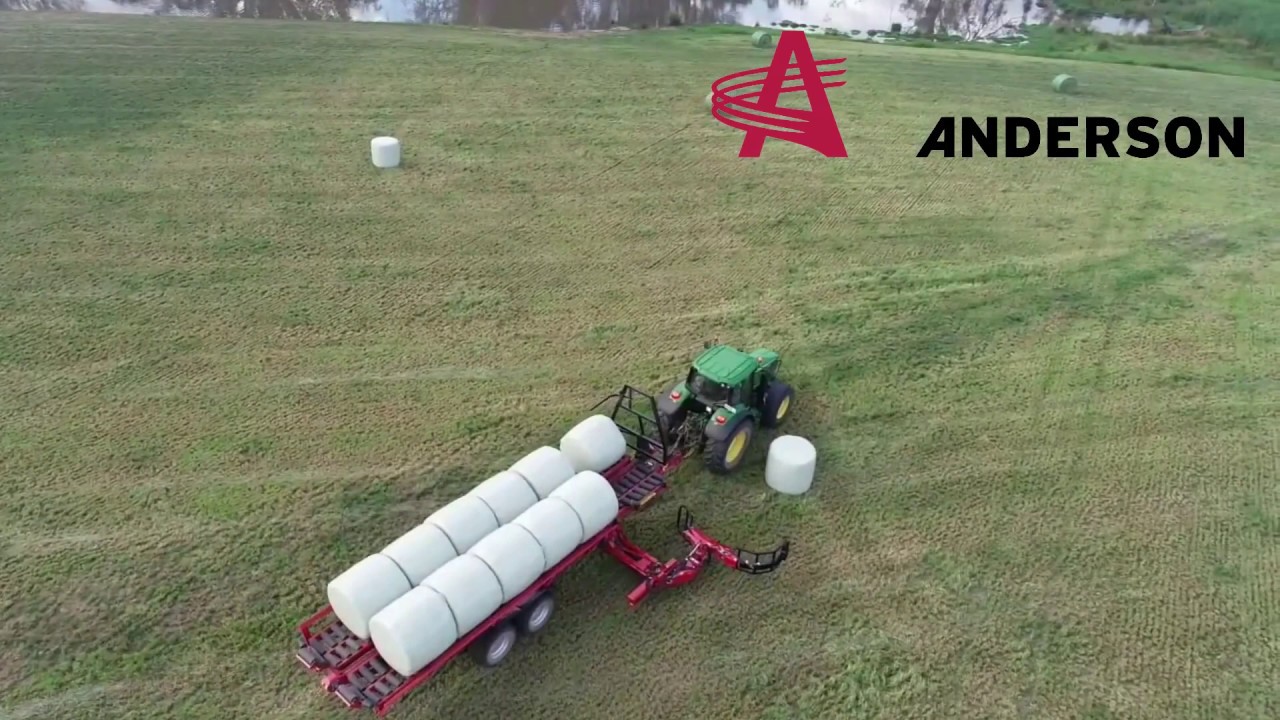

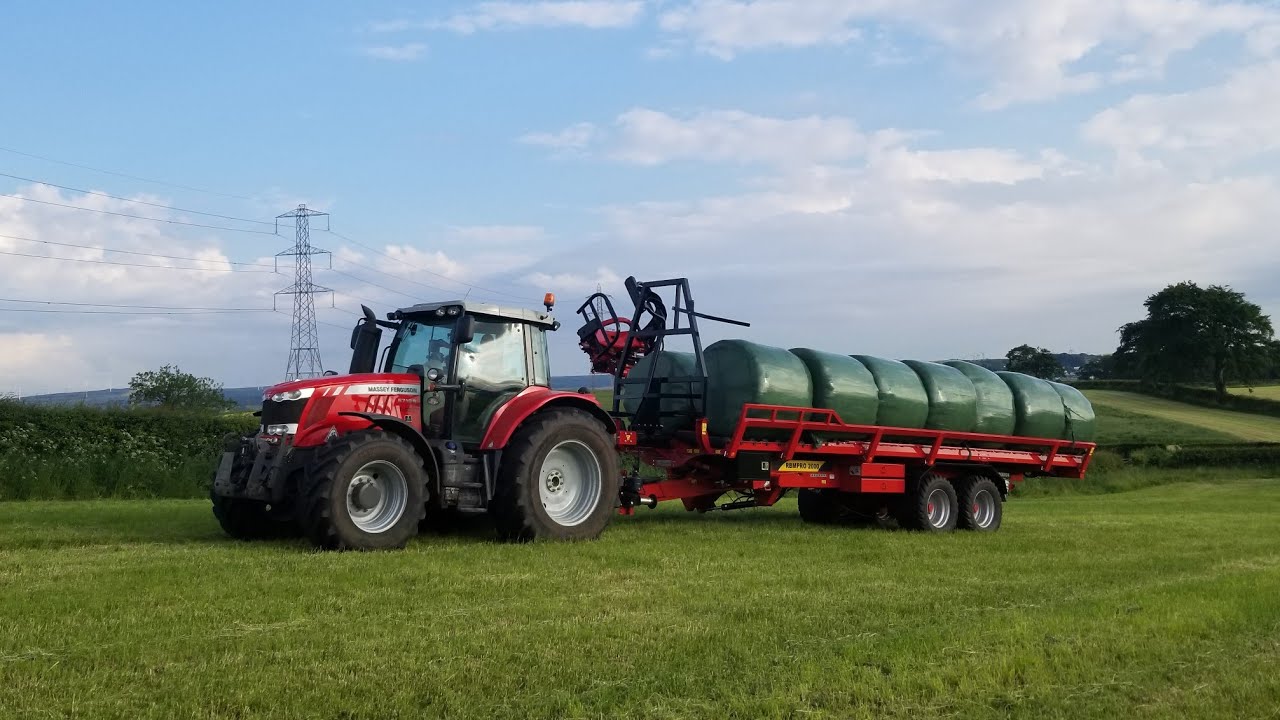

The Anderson Group is proud to introduce the world’s first self-loading bale carrier capable of handling efficiently wrapped silage bales.
The RBMPRO series can move nearly twice as many bales as any traditional platform system. It reduces the time spent in the field, the labor, as well as the fuel consumption. This allows more time for the farmer or the contractor to spend it where it counts! Finally, the superior productivity of the RBMPRO series helps to free the field as quickly as the baler passes through it, all without risks of breaking the plastic.
Specifications
Model

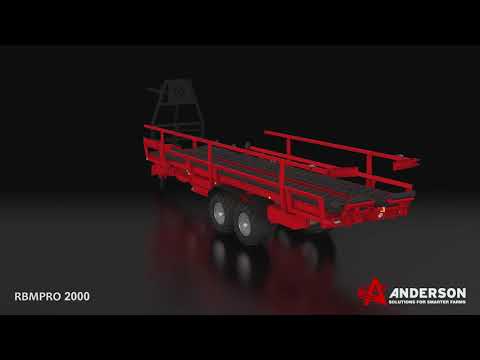

RBMPRO 2000 Round bales
Category Name
Agriculture
Year
2024
Sale Type
New
Manufacturer
Anderson
Tires
550/45-22,5
Controls
Touchscreen display
Tandem Axle
Standard
Safety Chain
Standard
HP Requirements
130 HP
Caméra (de Recul)
Standard
Self-loading Arm Design
Hydraulic clamp
Tandem Axle With Brakes
Optional
Self-Steering Axle With Brakes
Optional
Tractor Minimum Hydraulic Flow
2800 psi (190 bar)
Able To Load A Second Row Of Bales
Telescopic arm
Double Hydraulic Connections Required
3 + LS
features and options

    1. Possibility of collecting bales on their flat or round side
    2. Bale loading speed: 8 minutes 30 sec for 20 bales
    3. Unloading in 45 seconds
    4. Fully automated (little operator experience required)
    5. Touch screen with self-diagnostic system
    6. Danfoss hydraulics
    7. Patented design

    8.Monitoring of customer statistics (ideal for contractors)
bale
Round bale diameter Up to 5 ft (1,5 m)
Bale type Baleage/dry hay/straw/ Wrapped bale (min. 6 layers of film)
dimensions
Width – A 8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm) 8 ft 4 in (2,55 m)
Height – B 12 ft 2 in (3.71m)
Overall height (inlcuding loading arm) 12 pi 6 po (3.81m)
Bed height - E 5 pi (1,55 m)
Overall length – D 38 pi 5 po (11,76 m)
Overall weight 14 990 lb (6800 kg)
Empty Weight on tow bar*** 3415 lb (1550 kg)
capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) In 2 rows = 14nIn 3 rows = 19 or 20
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) In 2 rows = 14nIn 3 rows = 19 or 20
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) n/a
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) In 2 rows = 12nIn 3 rows = 16 or 17
Loading arm lifting capacity 2500 lb (1135 kg)
Total weight including load 42 000 lb (19 000 kg)
