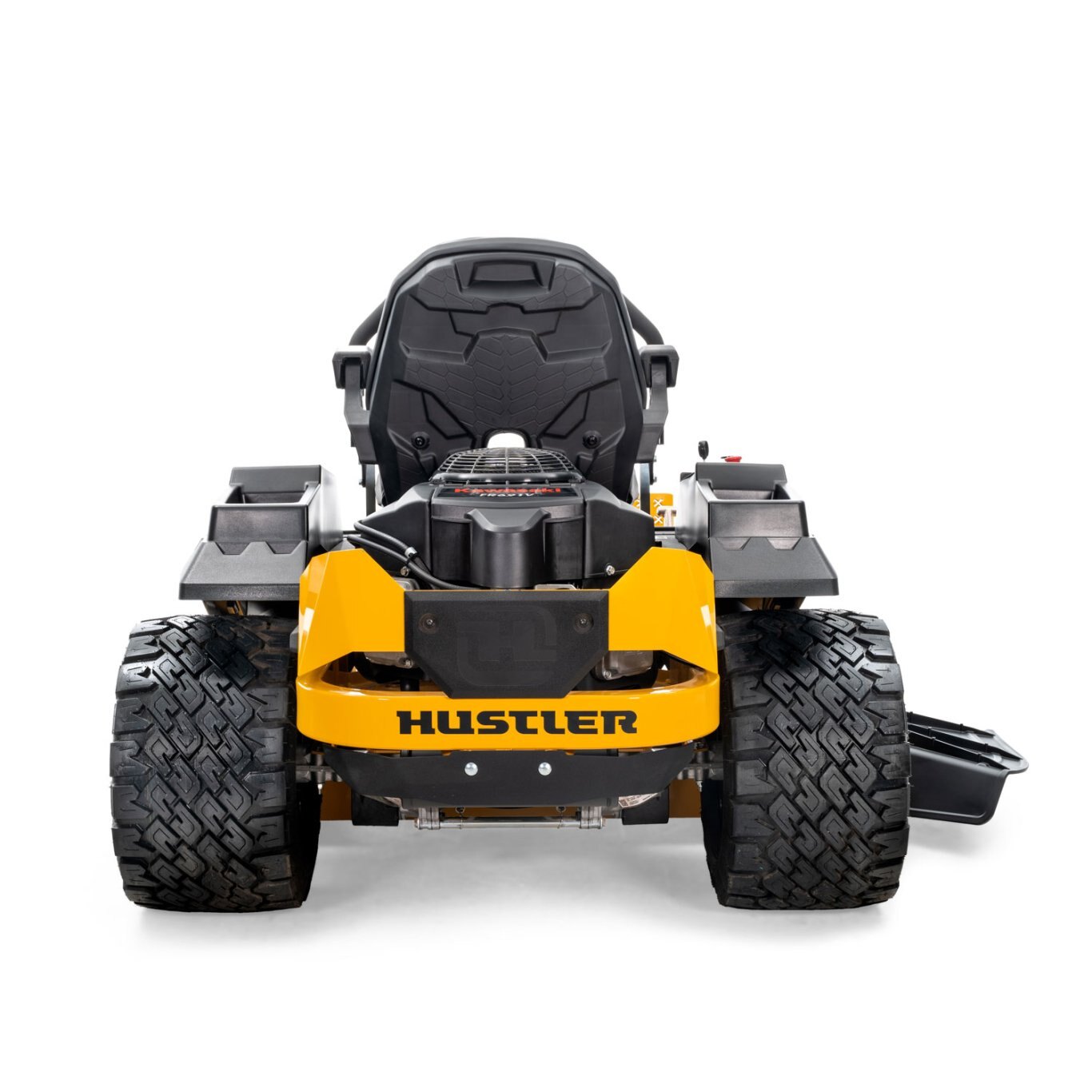

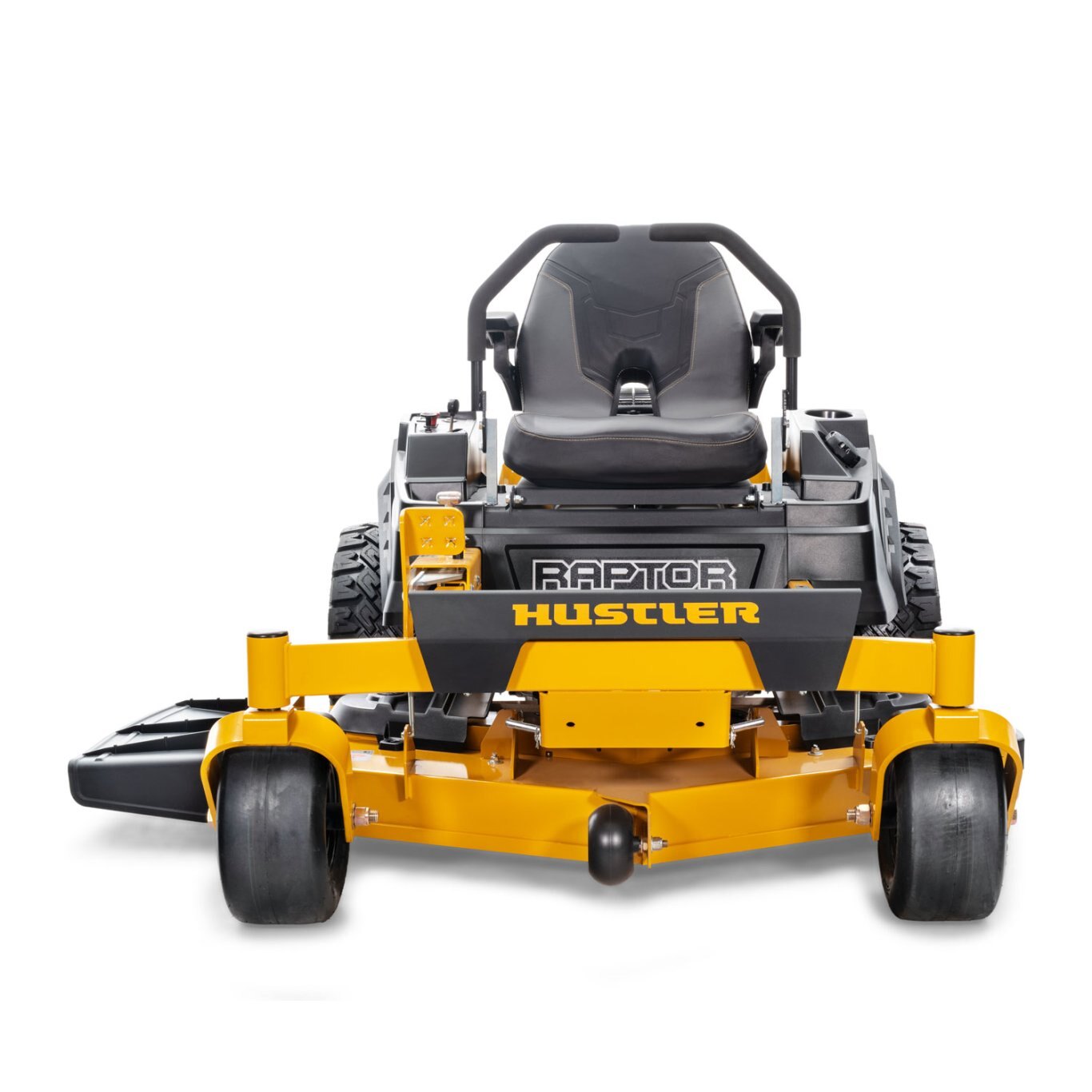

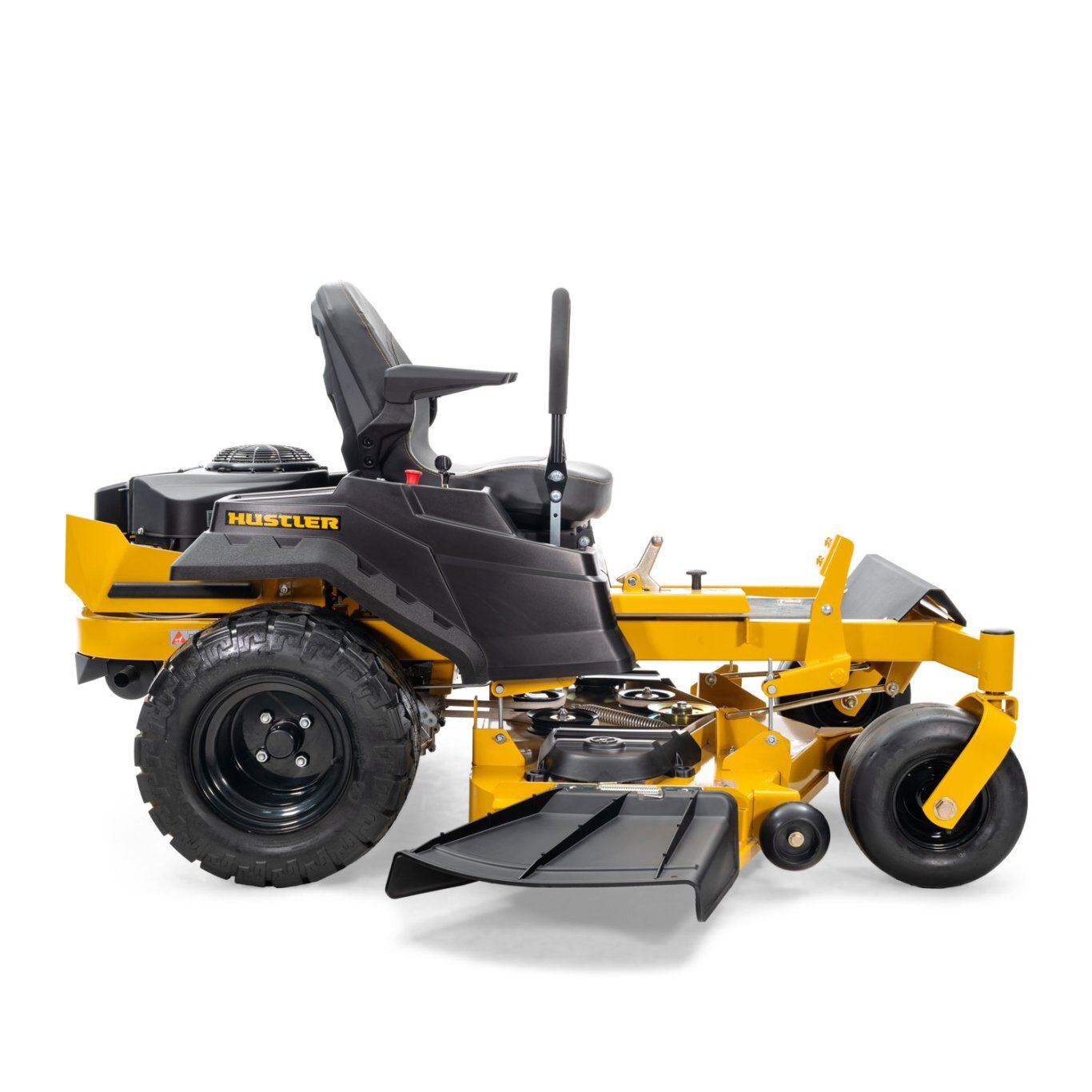

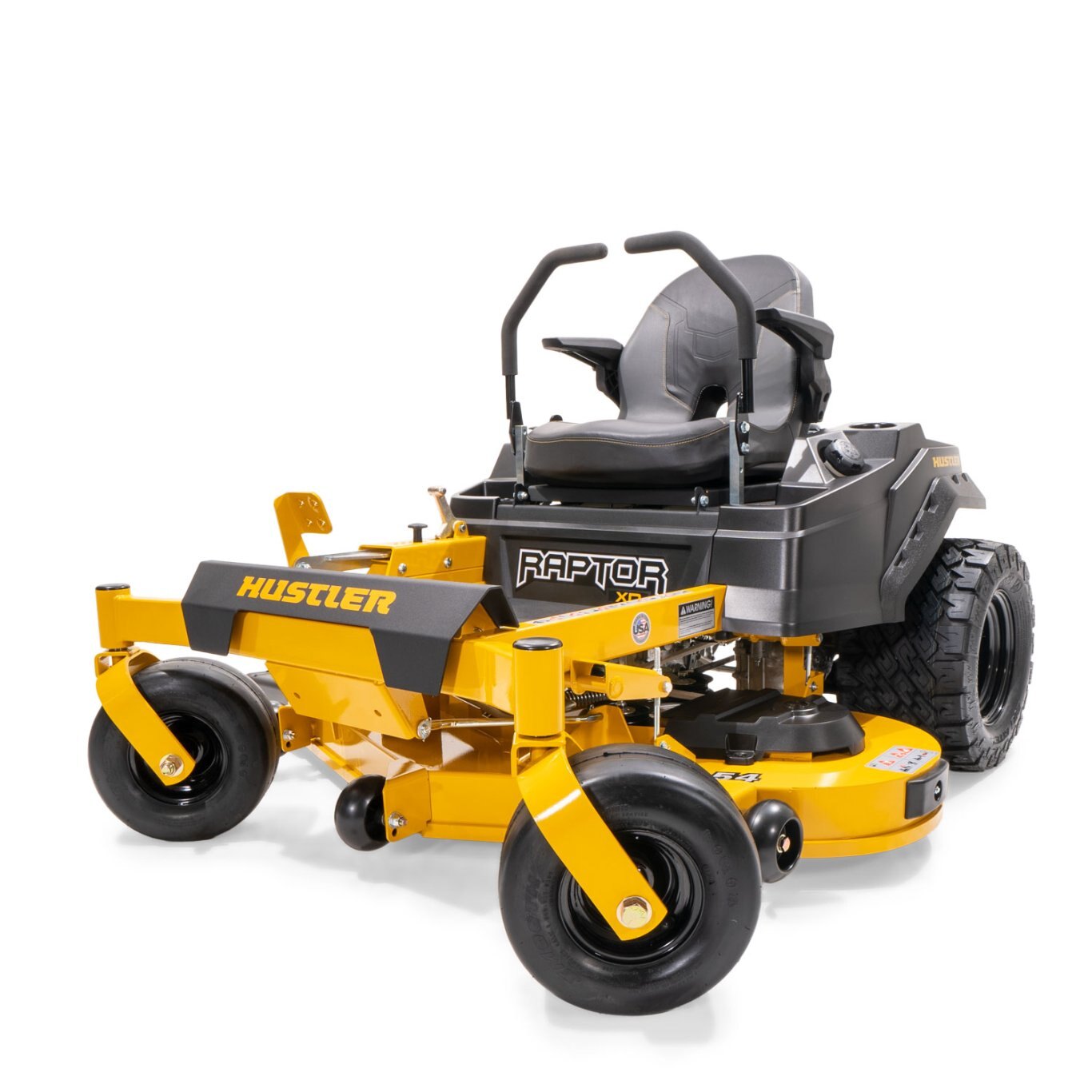

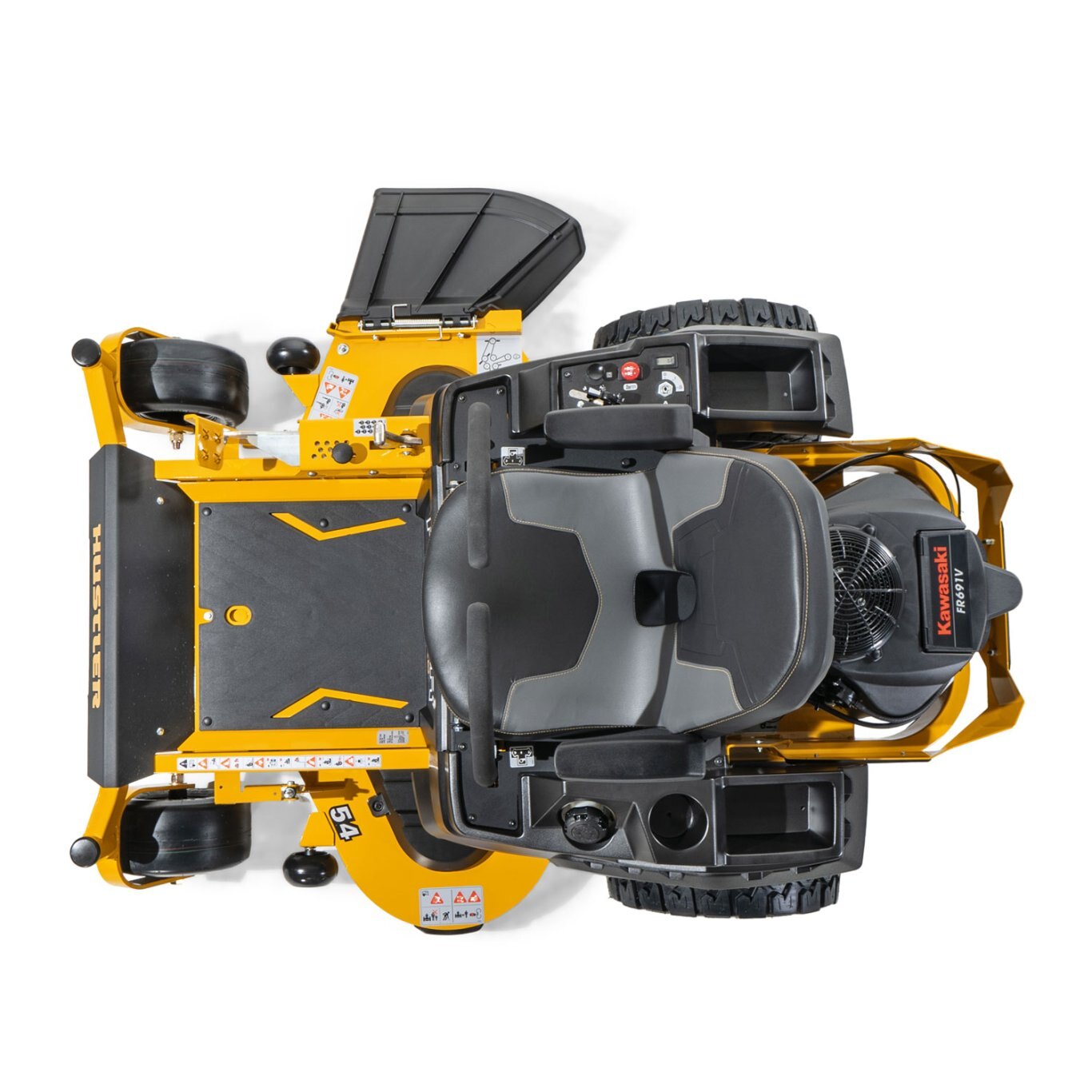

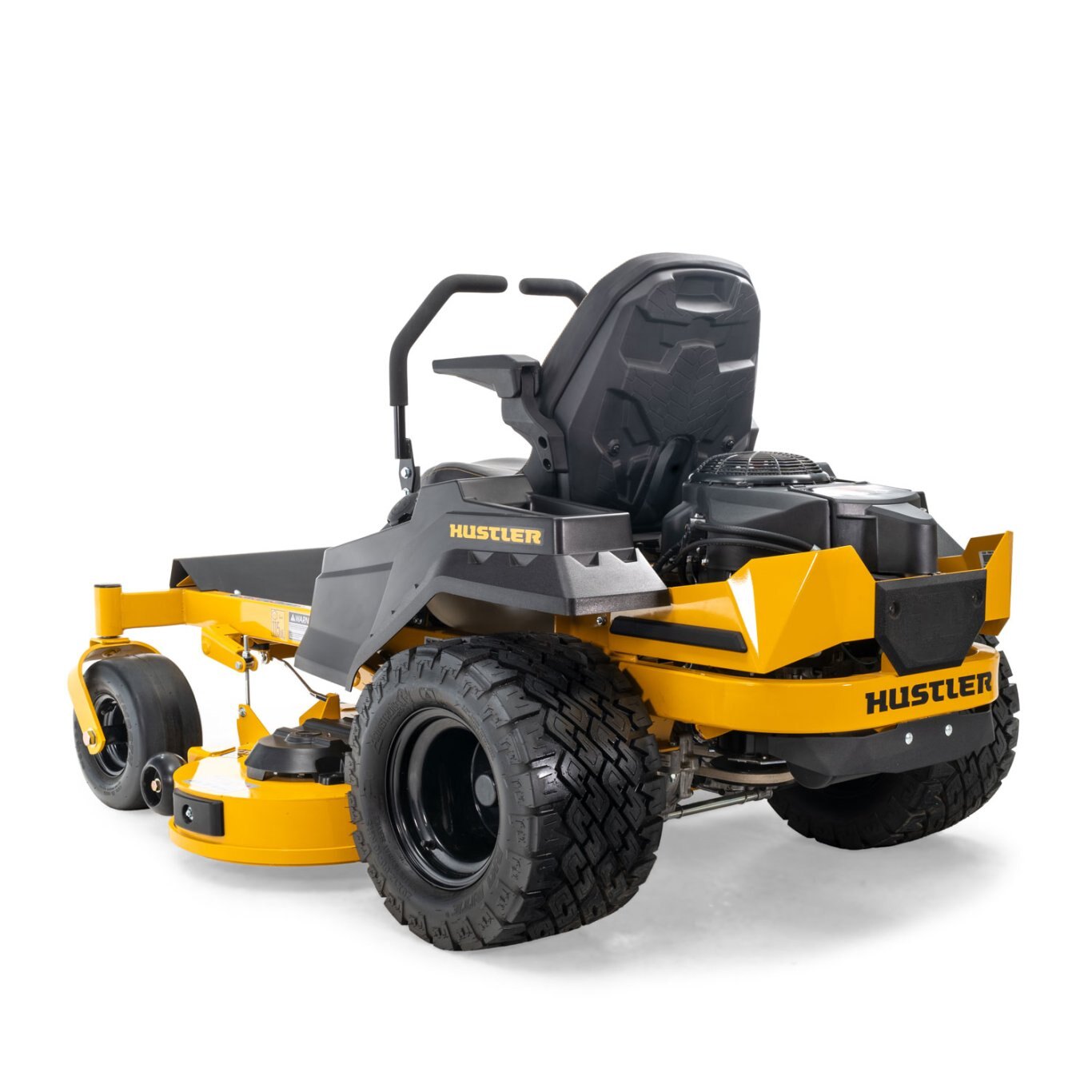

Hustler Raptor XD- 42"

  • Hustler Raptor XD 42
  • Hustler Raptor XD 42
  • Hustler Raptor XD 42
  • Hustler Raptor XD 42
  • Hustler Raptor XD 42
  • Hustler Raptor XD 42
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The Raptor XD is the ideal zero-turn for homeowners with up to 5 acres of property. The up to 24hp Kawasaki horsepower and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a professional-grade cut-quality. Raptor XD’s are backed by an industry leading 3yr / 300hr warranty.

  • 21.5hp, 23hp & 24hp Kawasaki Engines

  • 42” 48", 54" & 60” decks

  • Up to 7.5 mph mowing speed

  • 3-year / 300 hour limited warranty
Engine

Deck Sizes

21.5HP - Kawasaki FR651

42”, 48"

23HP - Kawasaki FR691

54”

24HP - Kawasaki FR730

60"
Specifications
Model
Raptor XD
Category Name
Zero Turn Mowers
Year
2025
Sale Type
New
Manufacturer
Hustler
features

Hustler Raptor XD 42 Premium Seat

Premium bolstered high-back seat with armrests and built-in lumbar support.

Hustler Raptor XD 42

Welded Steel Deck

Welded fabricated steel deck adds durability & extends mower's life. Up to 60" deck size available.

Hustler Raptor XD 42

BigBite™ Rear Tires

We worked directly with the tire manufacturer on this design. You will not find them anywhere else.
key specs
WARRANTY
3 Year/300 hour residential
DRIVE TIRE
20 x 8-10 BigBite™
FRONT TIRE
13 x 5
TRANSMISSION
Hydro-Gear ZT-2800®
CUTTING WIDTH
42"
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
21.5
GROUND SPEED (FWD)
Up to 7.5 mph
ENGINE MANUFACTURER
Kawasaki FR651
engine
COOLING
Air Cooled
DISPLACEMENT
726cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
21.5
ENGINE MANUFACTURER
Kawasaki FR651
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear ZT-2800®
FUEL CAPACITY
3 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 7.5 mph
deck
SPINDLES
Aluminum with 1" shaft and double lip sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
4.5"
BLADE LENGTH
20.50"
CUTTING WIDTH
42"
DECK MATERIAL
Fabricated 11 gauge steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 gauge steel
BLADE TIP SPEED
18,000
DECK ENGAGEMENT
Ogura GT1.5
IMPACT TRIM AREA
3/8" x 1" steel bar
NUMBER OF BLADES
2
construction
FRAME
1.5" X 3.0" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Sealed ball bearings
general
SEAT
Bolstered high-back seat with armrests and built-in lumbar support
CUP HOLDER
dimensions
WEIGHT (LBS)
616
HEIGHT (INCHES)
43.7
LENGTH (INCHES)
69.3
DRIVE TIRE (INCHES)
20 x 8-10 BigBite™
FRONT TIRE (INCHES)
13 x 5
WIDTH W/ CHUTE UP (INCHES)
45.8
TIRE-TO-TIRE WIDTH (INCHES)
42
PRODUCTIVITY (ACRES PER HOUR)
2.55
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
56.5
MOWER LENGTH W/ CATCHER
91.4
literature
Name Link
Specs PDF Download
Brochure PDF Download
